Experimental features

Playground

• The playground provides a visuospatial "playground" where you can import discourse graph elements and do visual exploratory sensemaking over your claims and evidence, then export to a Roam page as a rough outline.

  •
• Quick [[HowTo]]: create a page that starts with the word "Playground" and click into it.

  • Map features:

    • Click anywhere to create a node

      • Defaults to block text, but you can also select specialized discourse nodes to add with this toolbar in the top right:
    • to delete nodes or relations

    • to draw relations between nodes. NOTE: make sure you click on the edges of the sources/targets, not the middle. The latter will open the pages in the sidebar, if they exist.

    • Click on relation arrow to choose and set relation type
    • to trigger [[discourse-graph/live-preview]], similar to [[Roam42]]/ This live preview feature is also available anywhere else on your graph if enabled.

      •

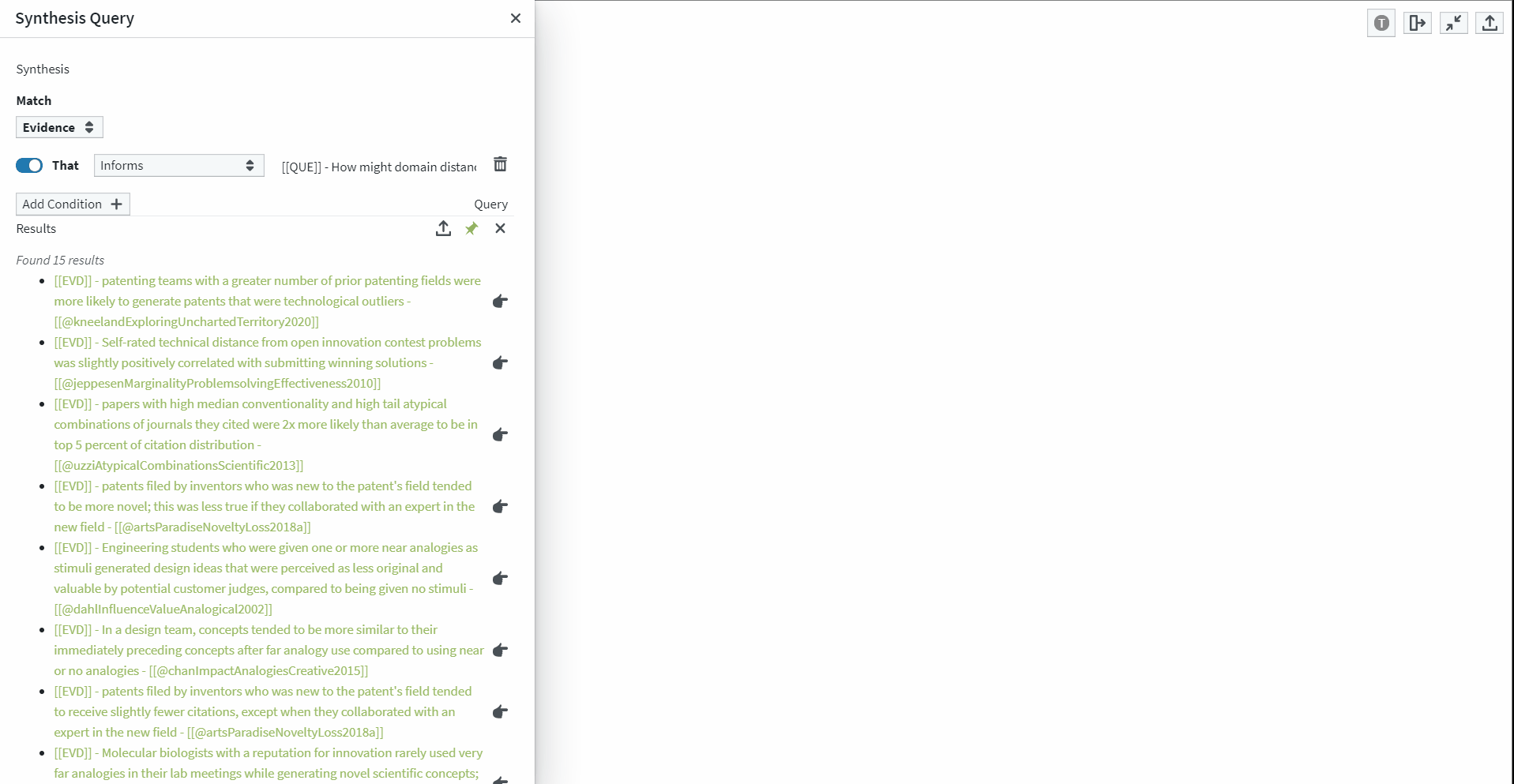

    • Open synthesis query component in left by clicking this icon int he top right corner:
    • Make the playground "full screen" by clicking the maximize icon in the top right corner

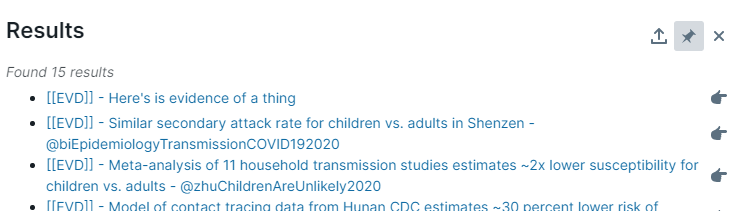

    • "Pin" query results and insert into playground space by clicking on the "right pointer" button next to each query result

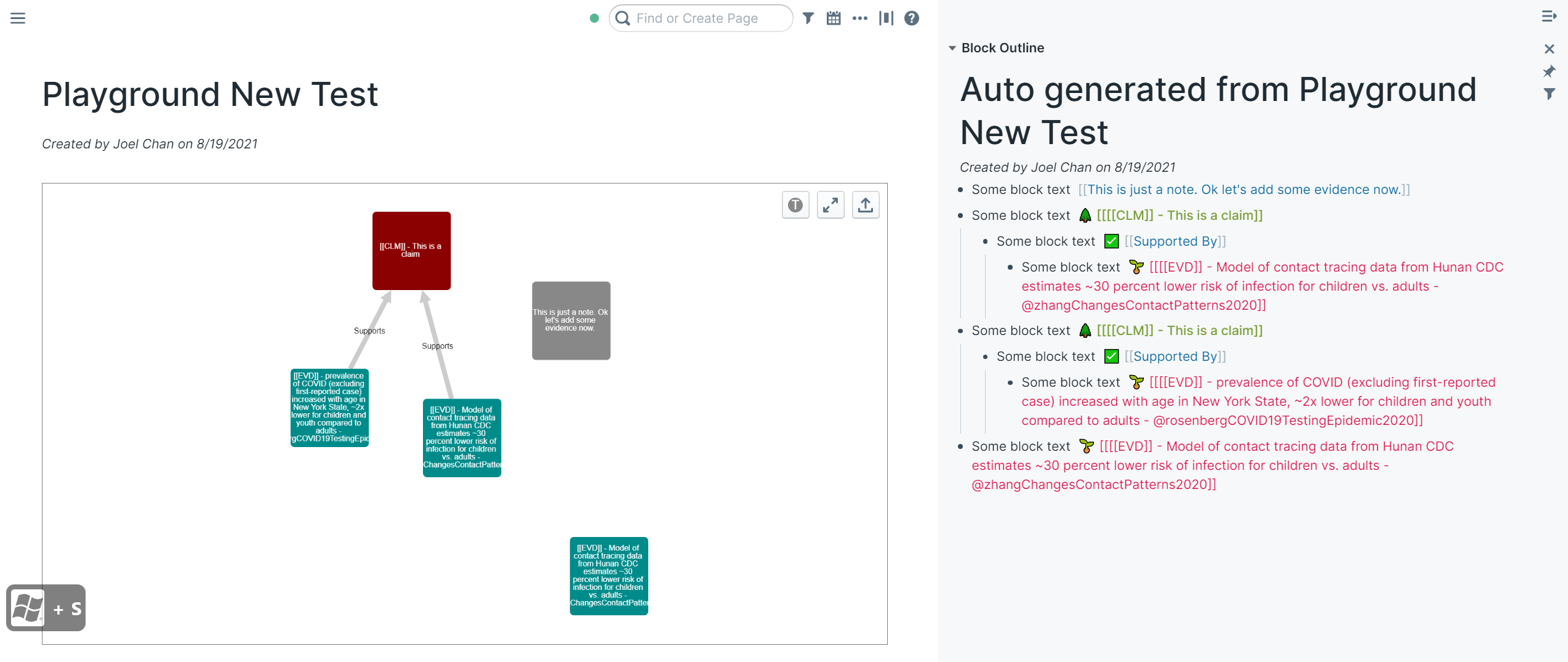

    • NEW #experimental feature as of [[August 13th, 2021]]! "Export" your playground elements into a Roam page by clicking on the "export" button in the top right

      • The export turns the structure on the map into a Roam outline on the right that preserves the core discourse relations specified in the playground
  • Note: you can create multiple playgrounds

  • Demo:

    • https://www.loom.com/share/acb752ced9804770a287282c7b27f596
